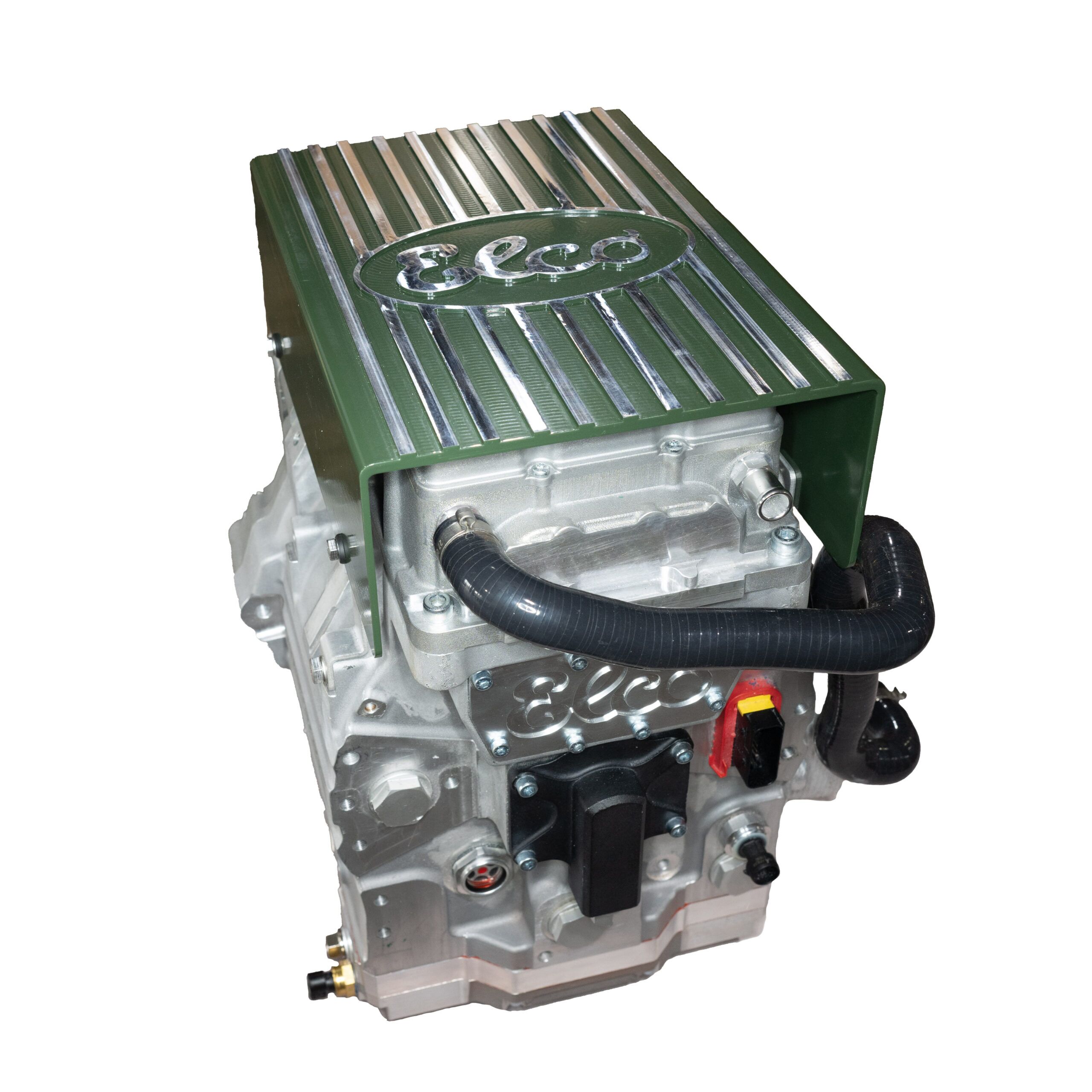

Elco’s revolutionary and award-winning EP-250 electric inboard motor replaces gas or diesel power from 100 to 250 horsepower, yet it fits within a 2-foot cube and weighs just 205 pounds. Elco’s battery-flexible engineering leverages industry-leading technology, including new solid-state batteries that are half the weight and a third smaller than traditional wet-electrolyte lithium batteries. The EP-250 brings exhilarating performance to inboard planing powerboats and robust power to displacement and semi-displacement boats in an incredibly compact, lightweight configuration. Integrated reduction gearing facilitates larger, more efficient propellers, yet still results in just four moving parts with no transmission and no exhaust system. Straightforward installation and NMEA 2000 compatibility ensure flexible integration to boats, batteries, and systems.
| BATTERY VOLTAGE (NOMINAL) | 350 vdc |
| BATTERY VOLTAGE (OPERATING RANGE) | 218-480 V |
| BATTERY CURRENT (MAXIMUM CONTINUOUS) | 300 amps |
| SUGGESTED BATTERY CAPACITY | 210-600Ah |
| KILOWATTS (CONTINUOUS) | 105.0kW |
| MAXIMUM RPM | 6000 RPM |
| SUGGESTED FOR BOAT LENGTHS | 20’-120’ |
| SUGGESTED FOR BOAT WEIGHTS (LBS) | 140,000lbs |
| COMPARABLE HORSEPOWER | 250HP |
| HP REPLACEMENT RANGE | 100-250HP |
| INBOARD WEIGHT | 205 lbs |
| OVERALL DIMENSIONS (LENGTH, WIDTH, HEIGHT) | 23”x18”x15” |
| MSRP | $79,995 |
